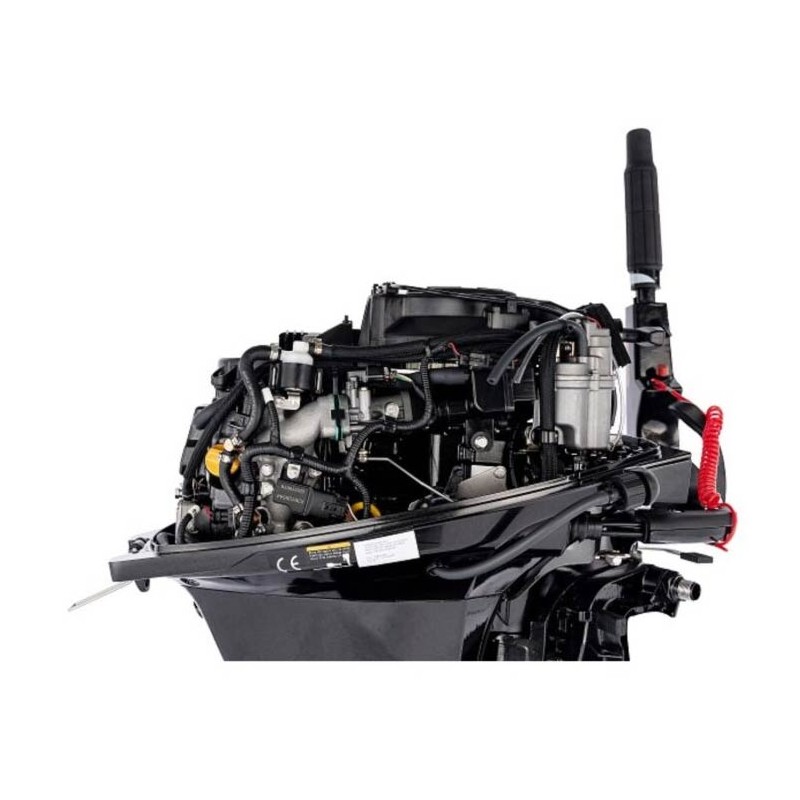

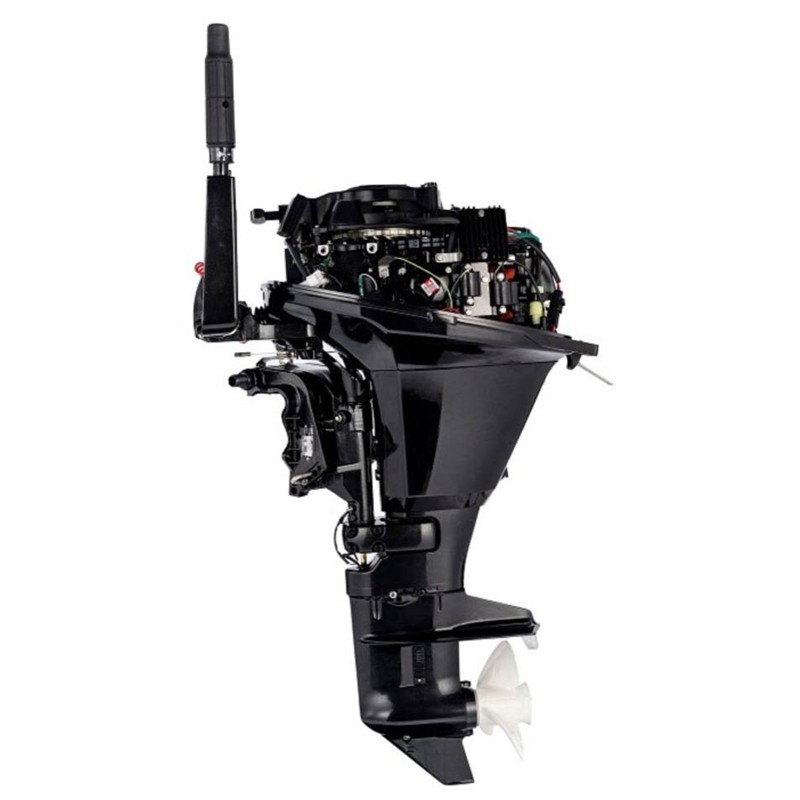

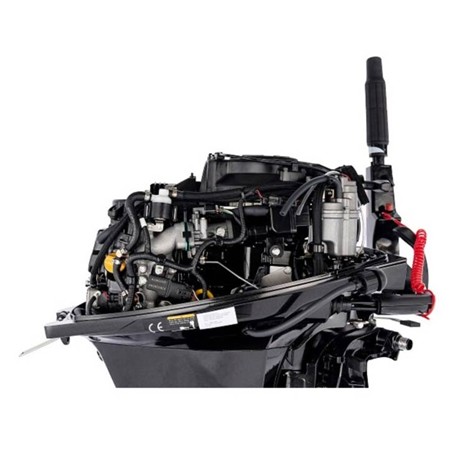

PARSUN 20 HP short shaft tiller control motor
These are robust and dynamic motors, whose quality exceeds the standards requested in CE and EPA norms
All PARSUN outboard motors are subject to quality controls in the factory, to ensure perfect mechanical operation and to offer our distributors and users the certainty of having one of the best 4 stroke outboard motors on the market.
Short shaft features • Short shaft • Tiller control • Overall length: 988mm • Overall width: 420mm • Overall height: 1070mm • Recommended transom height: 381mm • Weight: 51.7kg
Technical data • Turns: 5000-6000 rpm • Power [kw (HP) @ rpm]: 14.7(20)@5500 • Engine type: SOHC • Number of cylinder(s): 2 in line • Displacement: 362 cm³ • Bore x stroke: 63 x 58.1mm • Ignition system: CDI • Starting system: Manual • Positions: Forward-Neutral-Reverse • Gear ratio: 2.08 : 1 (27/13) • Tilting: Manual Adjustment • Tank capacity: 24L (Integrated) • Max consumption: 6.9 L/h • Crankcase oil capacity: 1.6 L • Oil capacity in the base: 25 Cl • Three-blade propeller: diam. x pitch [inches]: 3-9 ¼" x 11"

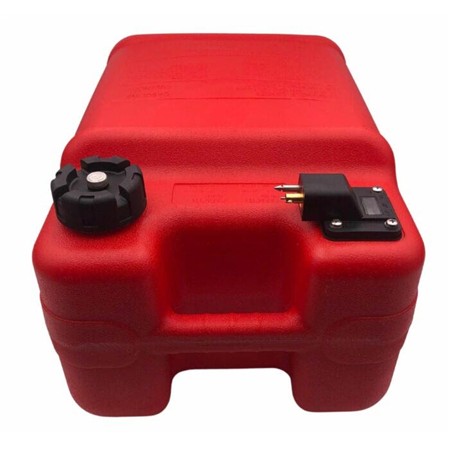

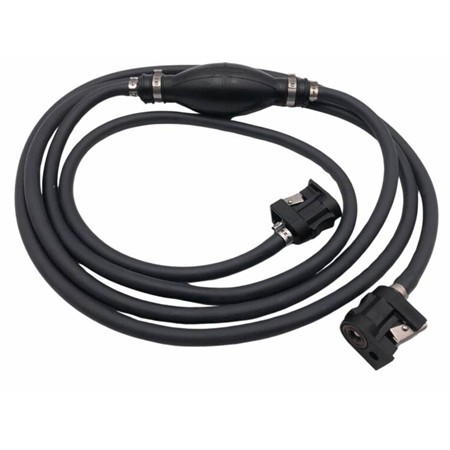

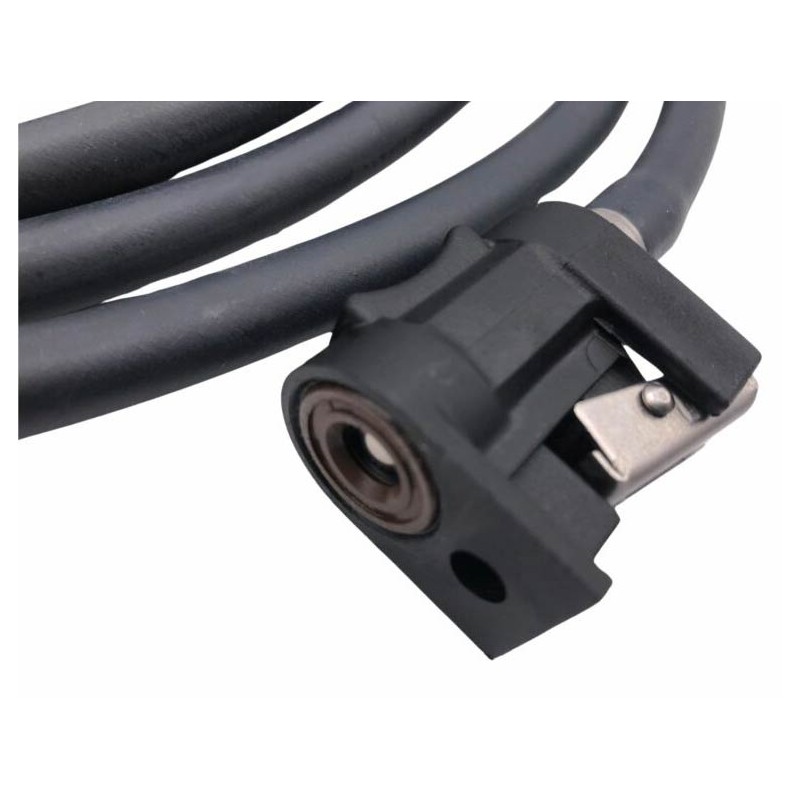

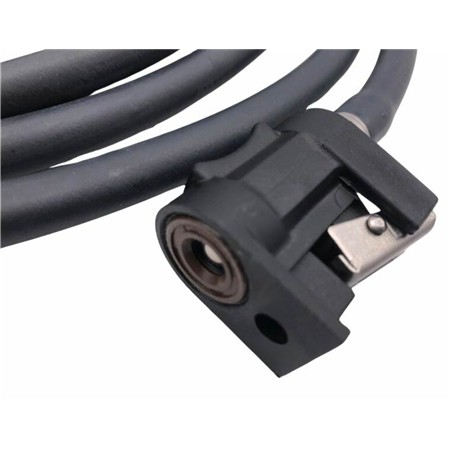

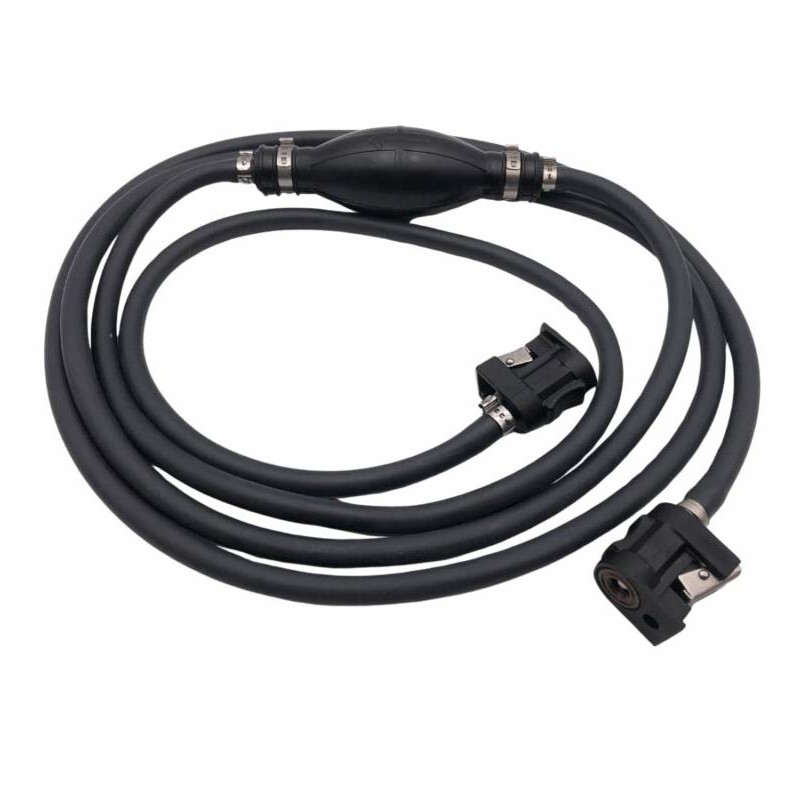

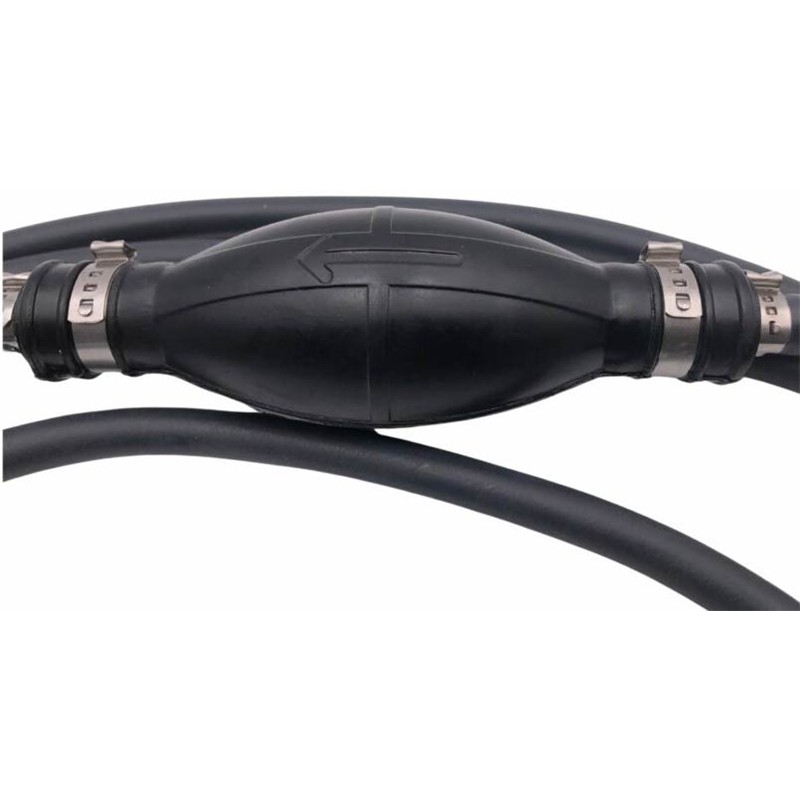

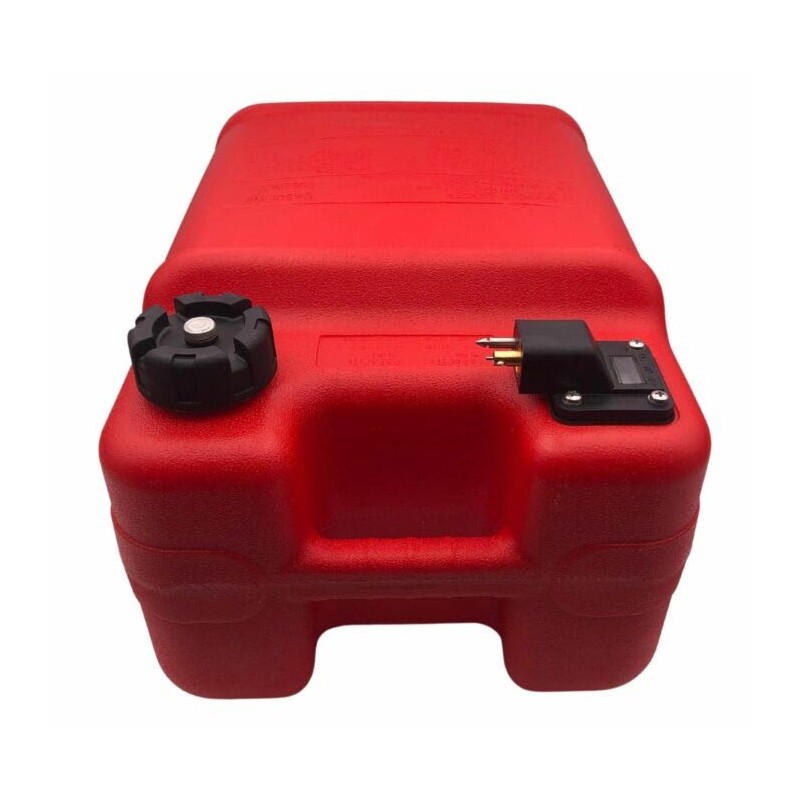

In the pack: • External 24L tank • Supply pipe and priming bulb • Backup cord and launcher handle • Kill switch cord • User manual in French
CAUTION, Parson motors are delivered: • Without engine oil: the customer must fill it up (oil type: SAE10W30 or SAE10W40) • With a storage oil in the base: this must be drained, the oil to buy is a Hypoid SAE 90 oil The fuel to use is necessarily unleaded gasoline 98.
