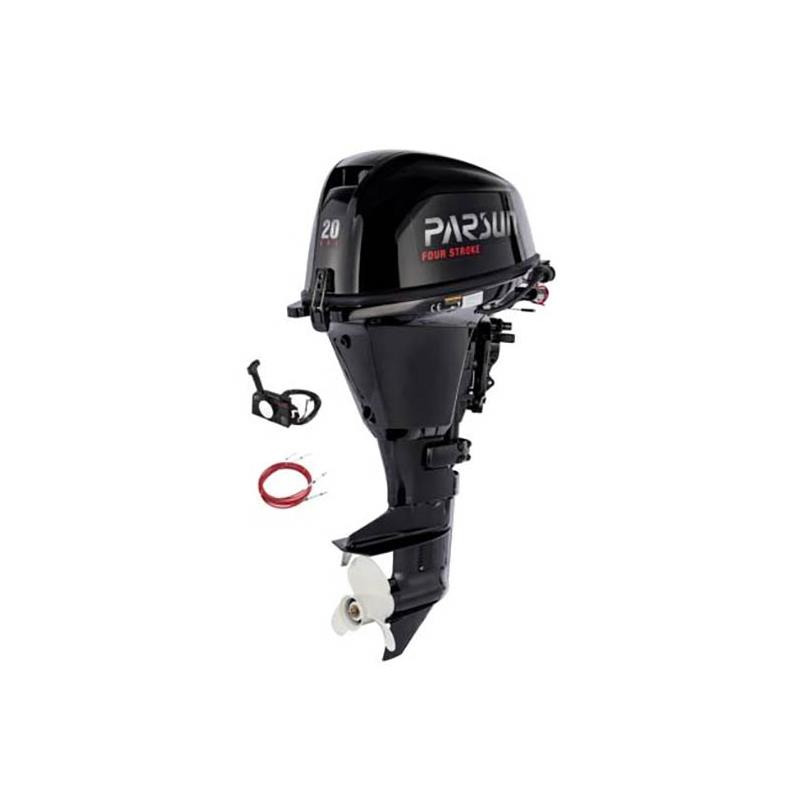

Features of the F20AFWL-EFI thermal engine:
New generation engine, this compact design model offers high performance thanks to its electronic fuel injection (EFI) system, this with minimal consumption. In addition, its integrated electronic management offers easy starting and rapid acceleration. All PARSUN outboard engines are factory quality checked, to ensure flawless mechanical operation and to provide our distributors and users with the certainty of having one of the best 4-stroke outboard engines on the market. Sturdy and dynamic, their qualities exceed the standards required in CE and EPA standards
Electronic EFI injection: easy start, gentle idle, quick acceleration and fuel economy Innovative CDI system for easy starting and low idle Forward gear shift and flush device for added convenience Rev limiter, overheating and low oil pressure warning Easy to monitor oil level indicator Wide turning angle for easier manoeuvrability Safety lanyard for emergency stop Water cooling system controlled by thermostat for constant engine temperature Sturdy aluminium propeller Effective vibration reduction system for smoother and quieter performance Quiet exhaust system 24L tank with feed conduit and priming bulb Single lever throttle with electric start Throttle cable Forward reverse control cable 2 ignition keys Pull cord and handle for leaf blower User manual in French
• Short Shaft • Overall length: 665 mm • Overall width: 430 mm • Overall height: 1197 mm • Recommended transom height: 508 mm • Weight: 54.7 kg • Tours: 5000-6000 rpm • Power [kw (hp) @ rpm]: 14.7(20)@5500 • Engine type: SOHC • Number of cylinders: 2 in line • Displacement: 362 cc • Bore x stroke: 63 x 58.1 mm • Ignition system: CDI • Starting system: electric • Positions: Forward-Neutral-Reverse • Reduction ratio: 1.85: 1 (24/13) • Tilting: Manual adjustment • Tank capacity: 24 L • Max consumption: 6.9 L/h • Oil sump capacity: 1.7 L • Gearbox oil capacity: 43 Cl • Three-blade propeller: diam. x pitch [inches]: 3.9 1/4" x 11"
In the pack: - 24 L tank - Single lever throttle with electric start - Feed conduit and priming bulb - Pull cord and handle for leaf blower - Safety stop cord - Throttle cable - Forward reverse control cable - User manual in French
Parsun engines are delivered:
- Without engine oil: the customer must fill up (oil type: SAE10W30 or SAE10W40)
- With storage oil in the lower unit: this must be drained, the oil to buy is Hypoid SAE 90 oil
