Electric Motor Haswing Cayman B 55 Gps Version G1.6

Read more-Product description

(8 reviews)
Haswing
1085.50
Recommended retail price : €1266.90
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Price inc VAT
13022976
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
New software version G1.6 with Anchoring function directly on the remote control.

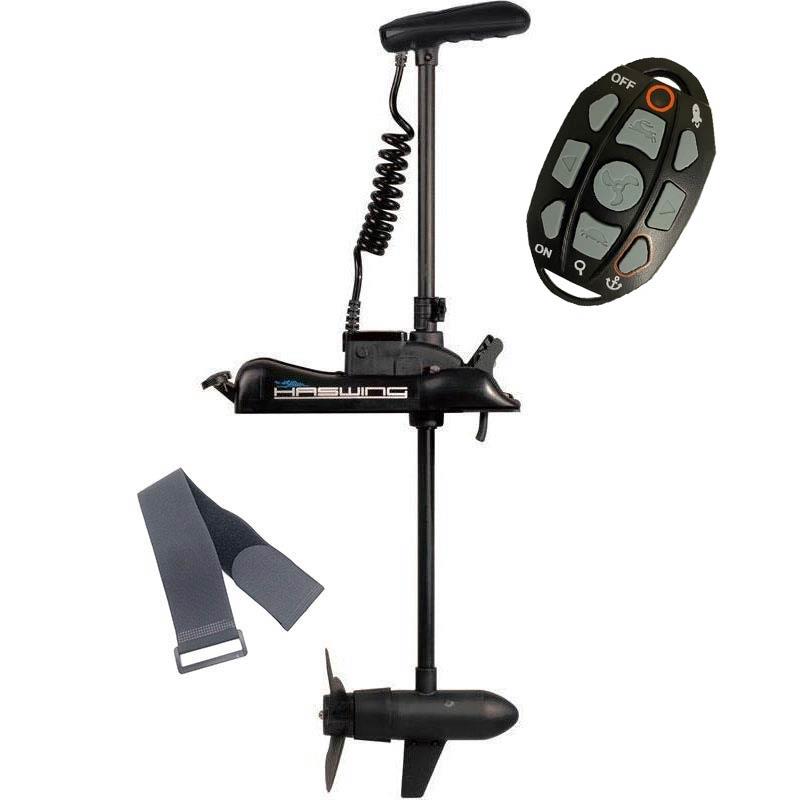

The Haswing Cayman-B 55 Lbs GPS model version G1.6 is mounted on the bow of the boat and is equipped not only with a classic remote control but also with a GPS function to be operated with your Apple or Android smartphone. This motor thus offers perfect maneuverability wherever you are on your boat. Its powerful 12-volt motor allows calm navigation in all waters and, thanks to its tilt system, the motor is lifted out of the water in no time. The indicators on its battery charge gauge let you check your autonomy at a glance.

• Supplied as standard with its wireless manual remote control (like the CaymanB 55 Lbs)
• Supplied as standard with a strap to lock the motor in the raised position.
• Optional new direction control pedal (old pedal not compatible due to new frequency)

Motor specifications :
• Max power (LBS) : 55
• Weight (kg) : 14.00
• Amp. (Nominal / max) (A) : 45 / 55
• Power (nominal / max) (W) : 540 / 660
• Voltage (V DC) : 12
• Number of levels for battery charge indication : 5
• Recommended battery (not included) : TYPE 105 Ah deep cycle
• Mounting : bow
• Motor control : Wireless remote control
• Speed setting (Forward / Reverse) : Direct variable electronic adjustment 360° rotation
• Shaft : material : Composite / aluminium
• Shaft : length (" / mm) : 54" / 137cm
• Propeller (black) : number of blades : 3
• Max boat length (m) / weight (kg) : 5,5 / 400
New software version G1.6

« The motor is fixed by 6 holes of 7mm, 6mm screws are supplied »

GPS :
To use the functions of the Cayman B 55 lbs GPS version G1.6, you need to download the HELMSMAN application (free) from the Apple or Android app stores (operating system: from OIS 8 and Android 4.3 + ) and synchronize it with your motor via wifi. From then on, you will be able to access all the features of your motor.

On your smartphone, the visual icons indicate :
a) The wifi connection with your motor
b) GPS reception quality (white: not connected - red: weak - yellow: strong - green: excellent)
NB : the operation of the motor in GPS mode depends on the quality of the signal received at the site where you are (satellite positioning, natural barriers such as mountains or forests …)
c) The travel speed (in km/h)
d) Engine RPM (0 to 10)
e) Battery charge status
f) The compass function
g) The map in map format or Google Earth

and thus allow control of the features :
a) Start, stop
b) Engine speed, increase, decrease (0 to10)
c) Port and starboard steering control
d) Activation of manual mode

GPS functions :
• Speed controller in GPS mode only (allows you to adjust your speed toward the point you have set)
• Track recording
• Route creation navigation (GPS only)
• Anchoring: allows an automatic return to the bow anchor of your boat to compensate for drift based on the GPS signal

NB : Position holding depends on currents and winds; for optimized position holding, placing the bow facing the wind and current is necessary before activating the anchoring system. Use on waters with shifting currents or shifting winds in confined sites makes positioning unpredictable; the motor will indeed be constantly solicited to correct drifts. We remind you that return to anchor is not a dynamic positioning system. Only dynamic positioning with a system (PRS) of hydroacoustic type or GPS-based, laser-based (Fanbeam and Cyscan) with combined actuators, bow thrusters + bow thruster + stern thrusters with position sensors, anemometers, accelerometers (inertial units) and gyroscopic compass managed by a computer system, can hold a vessel in position relative to the seabed.

• Download route
• Record routes and share itinerary with your friends
• Helmsman messaging to receive GPS function updates

Mounting option
• Quick Release plate for quick mounting and dismounting

Optional accessory
• Direction control pedal version G1.5 only

User manual
