Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Shipping
Weigth (kg)
Power (horses)
Shipping
Price inc VAT
F20ABWL-20CV
Shipped within
24h
53.7
20
Shipped within
24h
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

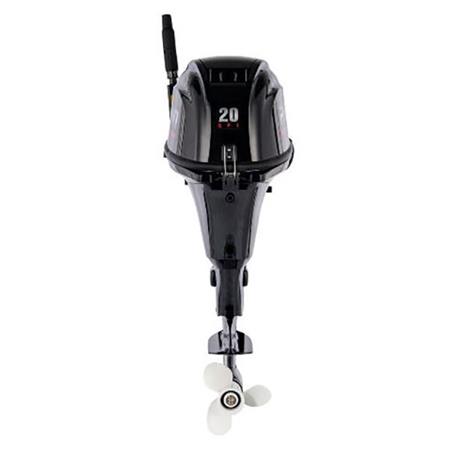

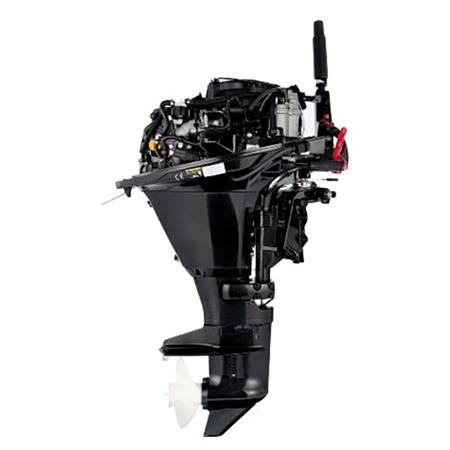

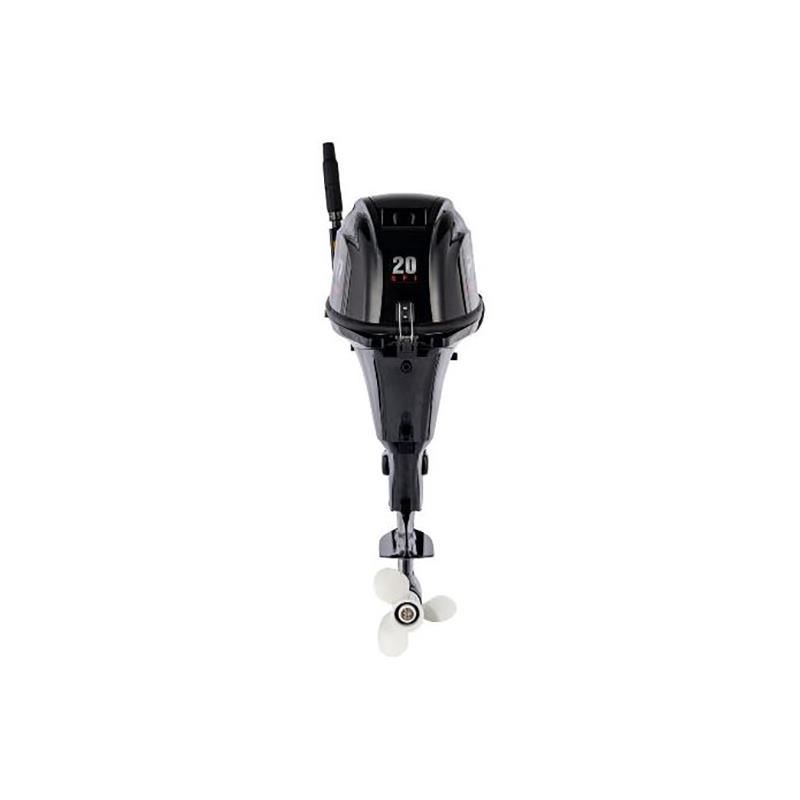

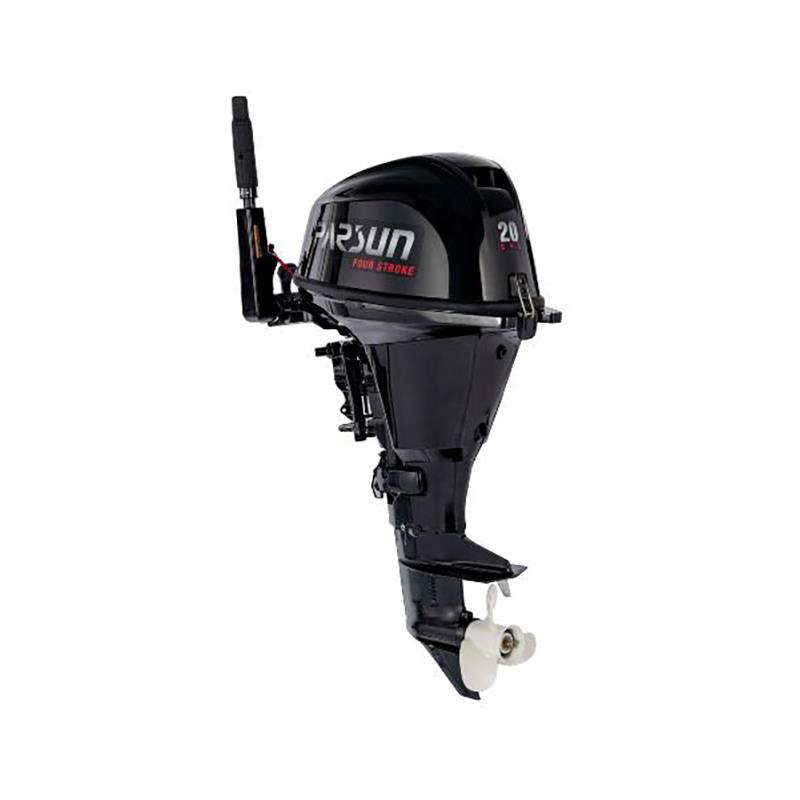

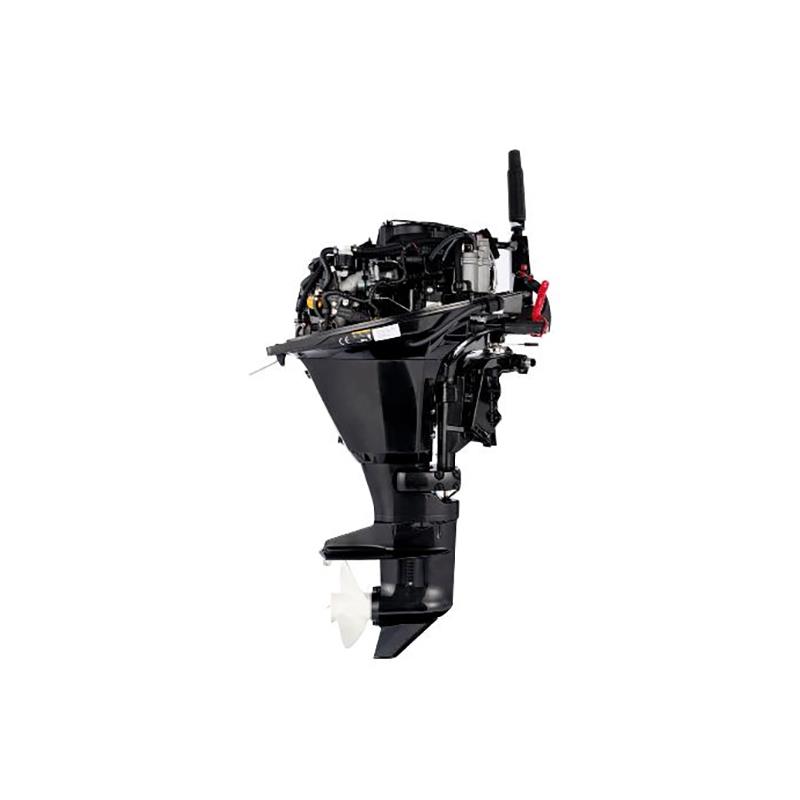

PARSUN 20 HP Engine, Long Shaft Tiller Electric Start
These are robust and dynamic motors, whose quality exceeds the standards required in CE and EPA norms
All PARSUN outboard motors undergo quality checks in the factory, to ensure perfect mechanical operation and to offer our distributors and users the certainty of having one of the best 4 stroke outboard motors on the market.
Short Shaft Features • Long Shaft • Tiller • Overall length: 988mm • Overall width: 420mm • Overall height: 1197 mm • Recommended transom height: 508 mm • Weight: 53.7 kg
Technical Data • Revolutions: 5000-6000 rpm • Power [kw (Hp) @ rpm] : 14.7(20)@5500 • Engine type: SOHC • Number of cylinder(s) : 2 in line • Displacement: 362 cm³ • Bore x stroke: 63 x 58.1 mm • Ignition system: CDI • Start system: Electric • Positions: Forward-Neutral-Reverse • Gear ratio: 2.08 : 1 (27/13) • Tilt : Manual Adjustment • Fuel tank capacity: 24 L (Integrated) • Max. consumption: 6.9 L/h • Oil sump capacity: 1.6 L • Gearbox oil capacity: 25 Cl • Three-blade propeller: diam. x pitch [inches] : 3-9 ¼" x 11"
In the pack : - 24 L tank - Fuel line and priming bulb - Emergency launch cord and handle
- Kill switch lanyard - French user manual
PLEASE NOTE, Parsons engines are delivered : - Without engine oil: the customer must fill it up (oil type: SAE10W30 or SAE10W40) - With storing oil in the gearbox: this must be drained, the oil to be purchased is Hypoid oil SAE 90 The fuel to be used must be unleaded 98.
