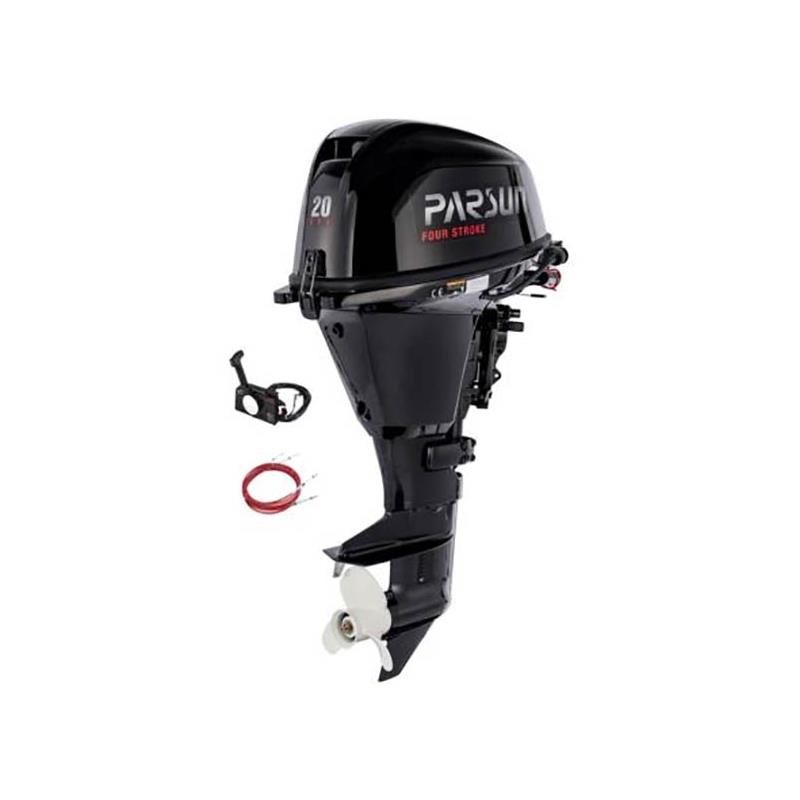

Features of the F20AFWS-EFI thermal engine:
A new generation engine, this compact design model offers high performance thanks to its electronic fuel injection (EFI) system, and this with minimal consumption. In addition, its integrated electronic management offers easy starting and rapid acceleration. All PARSUN outboard engines are subject to factory quality controls, to ensure perfect mechanical operation and to offer our distributors and users the certainty of having one of the best 4-stroke outboard engines on the market. Robust and dynamic, their qualities exceed the standards required in CE and EPA standards
• Electronic EFI injection: easy starting, smooth idling, rapid acceleration and fuel economy • Innovative CDI system for easy starting and low idle • Forward shifting and flushing device for extra convenience • RPM limiter, overheating warning and low oil pressure • Easy-to-monitor oil level indicator • Large steering angle for easier maneuverability • Safety cord for emergency stop • Thermostat controlled water cooling system for constant engine temperature • Robust aluminium propeller • Effective vibration reduction system for smoother, quieter performance • Silent exhaust system • 24L tank with feed pipe and priming bulb • Single-lever throttle with electric starting • Throttle cable • Forward reverse control cable • 2 ignition keys • Backup cord and handle for launcher • User's manual in French • Short Shaft • Overall length: 665 mm • Overall width: 430 mm • Overall height: 1070 mm • Recommended transom height: 381 mm • Weight: 52.7 kg • Turns: 5000-6000 rpm • Power [kw (Hp) @ rpm]: 14.7(20)@5500 • Engine type: SOHC • Number of cylinders: 2 in line • Displacement: 362 cm³ • Bore x stroke: 63 x 58.1 mm • Ignition system: CDI • Starting system: electric • Positions: Forward-Neutral-Reverse • Reduction ratio: 1.85 : 1 (24/13) • Tilting: Manual Adjustment • Tank capacity: 24 L • Max. consumption: 6.9 L/h • Crankcase oil capacity: 1.7 L • Oil capacity in the lower unit: 43 Cl • Three-blade propeller: diam. x pitch [inches]: 3.9 1/4" x 11"
In the pack: • 24 L tank • Single-lever throttle with electric starting • Feed pipe and priming bulb • Backup cord and handle for launcher • Tether switch • Throttle cable • Forward reverse control cable • User's manual in French
Parsun engines are delivered: • Without engine oil: the customer must fill it (oil type: SAE10W30 or SAE10W40) • With storage oil in the gear case: this must be drained, the oil to buy is Hypoid SAE 90 oil
