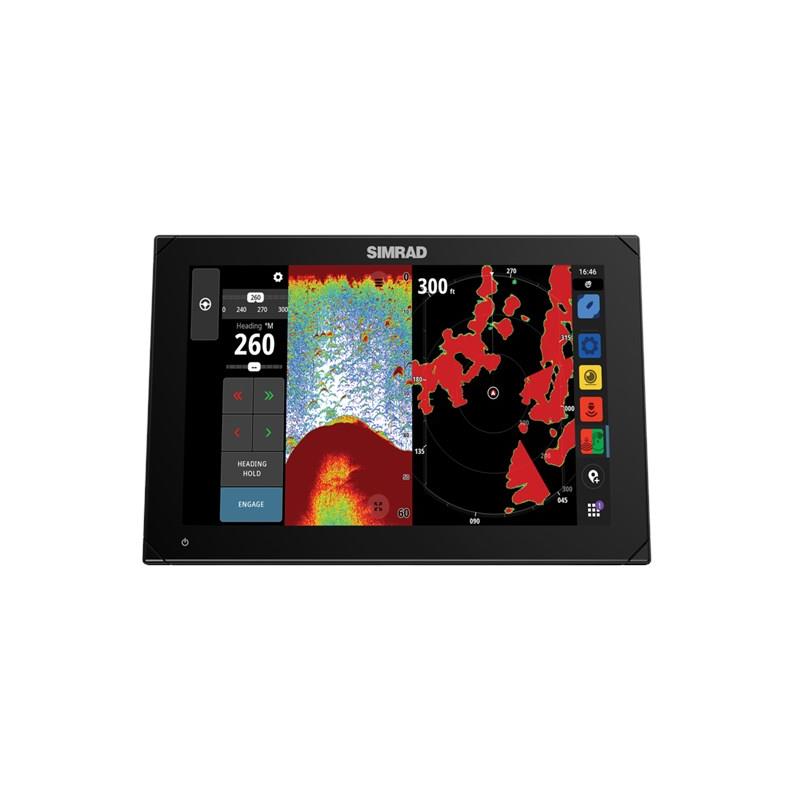

Gps Fishfinder Simrad Nsx 3012

Name: GPS FISHFINDER SIMRAD NSX 3012
Brand: Simrad
SKU: 249578

Read more-Product description

~~€3042.50~~

Recommended retail price : €3381.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Pixels

Transducer

Price inc VAT

000-15223-001

~~€3042.50~~

1280 x 800

~~€3042.50~~

000-15370-001

~~€3319~~

1280 x 800

Avec Sonde Active Imaging 3/1

~~€3319~~

Models & specificities Descriptive

Descriptive

Back to menu

Function	Value
Screen Size	12 inches
Touch Screen	yes
Classic 2D	yes
Down View	yes
Side View	yes
Chirp	yes
Gps	yes
Bathymetry	yes
Card Reader	yes
Live	no
Network	yes

*there may be subtleties and options indicated in the full description, do not hesitate to delve deeper or ask for advice.

Bring a new dimension to your experience with the intelligent Simrad® NSX™ chart plotter and powerful 1kw sonar module. Its modern and innovative interface supports C-MAP®, allowing you to see with unprecedented clarity. Our entirely touch-sensitive IPS screens with a resolution of 1280X800 pixels capture every detail. Fully equipped, the NSX accommodates built-in sonar, radar, and autopilot systems. With our handy setup assistant, you'll be up and running in no time.

GPS Plotter module compatible with C-MAP Discover™ X and C-MAP Reveal™ X maps only. Integration of the Simrad® app: keep your map data at your fingertips, on the water and onshore

Please note, the micro SD card reader is located behind the screen. You should allow space behind the sonar in bracket position or have quick access to the reader if your sonar is inset.

Fast, powerful, and smart, it is equipped with Bluetooth 4.0 to integrate the Simrad app onto your smartphone.

It also features an Ethernet connection to pair with another compatible Sonar device or the ACTIVE TARGET sonar for real-time images.

Main Functions:
• Supports C-MAP® DISCOVER™X and REVEAL™ X maritime cartographies, providing a modern and intuitive map presentation and daily updates
• High definition IPS touchscreen with extremely wide viewing angles, even visible through polarised glasses
• Supports high resolution fish and structure views through Active Imaging™ technology, CHIRP sonar, and SideScan and DownScan Imaging™ features, and offers a 1 kW depth sounder, reaching greater depths
• Setup assistant for quick startup and simpler sonar configuration
Complete integration with the option to expand the system with a sonar device, autopilot, Simrad® radar, and much more
• Faster autorouting and flawless accessibility
• See near and far simultaneously (up to 42 nm) with HALO® radar support, and benefit from lightning-quick updates every second
• Keep on track with full integration of the Simrad® autopilot
• Simple, modern interface
• Third-party app integration
• Wireless Connectivity, full networking capacity via Ethernet and NMEA 2000®
• IP video support

Technical Features:
• SD card storage: 1 MicroSD slot
• Ethernet ports: 1 port
• NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• Screen resolution: 1280 x 800 px
• Max. Power Consumption: 29.7 W (2150 mA at 13.8 V)
• Supply Voltage: 12 V DC (10 - 17 V DC min - max)
• Operating Temperature Range: -15°C to 55°C
• Recommended Fuse Rating: 3A
• GPS Receiver Channels: 32 channels
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
• Screen Size: 30.48cm
• Viewing Angle: 85°
• Bluetooth: Bluetooth 4.0
• Supported Cards: C-MAP Discover™ X, C-MAP Reveal™ X
• Wi-Fi connectivity: IEEE 802.11b/g/n
• GPS: Internal, 10Hz, WASS, MSAS, EGNOS
• Watertightness: IPx6 and IPx7
• Interface: Multi-touch screen
• Sonar Compatibility: One 9pins Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
• AIS: Receive AIS data over NMEA 2000
• Digital Switching: Simrad command DDS only on release to market
• Dimensions (H x W x D): No bracket, no suncover: W: 319.0 mm x H: 215.1 mm x D: 86.0 mm
• Weight: 2.2 kg

In the box:
• NSX 3012 Sounder
• 2ml 4-pin Power Cable Ref = 000-00128-001
• Vulcan 12/GO12 U-Bracket Ref = 000-14148-001
• NSX 3012 Screen Cover Ref = 000-15818-001
• NSX 3012 Dash Mount Kit, Vulcan2 Ref = 000-15825-001
• NSX, VULCAN2 Corner Clips Ref = 000-15822-001
• 1 ACTIVE IMAGING 3/1 Transducer depending on the selected model, except for the model Without a Transducer, which comes without a transducer.
