Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Shipping
Voltage (V)
Amperage max.
Shipping
Price inc VAT
BSR-ECO12100
€1014.90
€964.50Until 08/12/2024 included
Shipped within
24h
12
100
Shipped within
24h
€1014.90
€964.50Until 08/12/2024 included
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

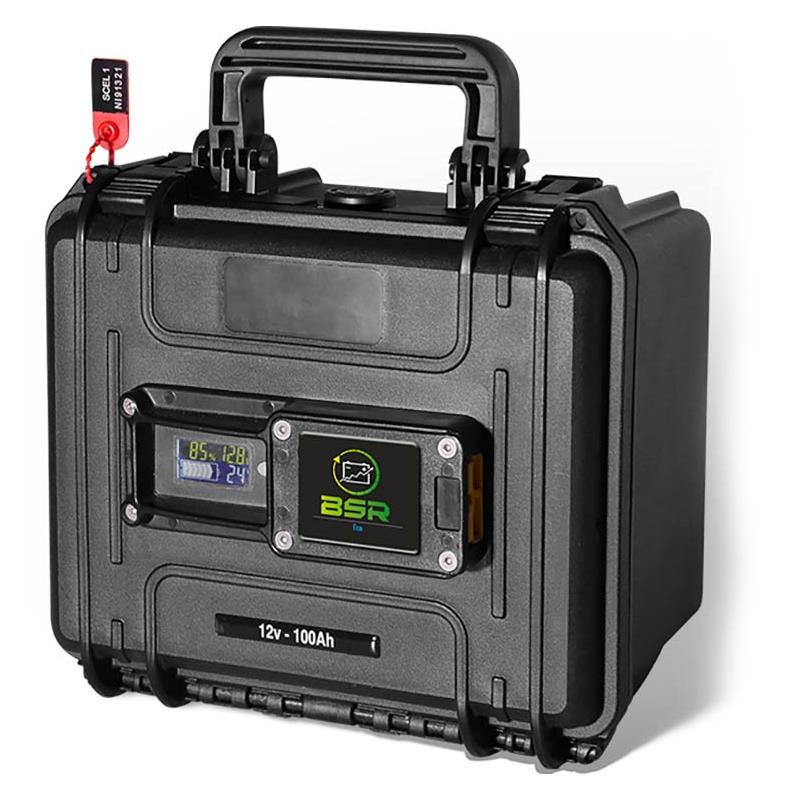

VLECO1250 - ECO Lithium Battery in 12 V 100 A suitcase format delivered with charger for electric motor power ONLY.
The new range of ECO lithium batteries are packaged in a waterproof IPx7 Polypropylene transport case.
Developed for intensive use in navigation and specifically designed to power Minn Kota electric motors. Focus on your fishing session, the BSR ECO battery takes care of the rest!
The suitcase is equipped with a motor outlet with a 50A Anderson connector. An LCD display indicating the voltage and remaining percentage.
Battery delivered with its NON waterproof 12V 10A charger with Anderson plug
Cell type 3,2v 50AH lifep04
2 Year Warranty • Protection with integrated 60A BMS, 60A Fuse, stainless steel fasteners.
BSR ECO Battery Features: • Structure: Polypropylene Suitcase Made in Italy • Connectivity: Waterproof 50A Anderson Quick Connector • After-sales service in France • Type: 12v 100Ah • Voltage: 12,8v • Technology: Life p04 / 1280 wh • Discharge cycle: 2000-3000 at 100% dod • Dimensions (mm): 258x243x167 • Net weight: 10 Kg • Discharge: 2c or 200A max • Charge: 1c max up to 100A • Discharge Cycle: 2000 at 100% dod • Charge voltage: 14,6v • Max discharge voltage: 10,50v • Ideal charge temperature: 0 to 45 °C • Possible discharge temperature: -25 to +55°C • Waterproof – IPX7 • Resistant to shock – vibration – sand – sea
50A Anderson motor cable connector for soldering or crimping.
In the box: • 1 ECO Battery 12v 100Ah • 1 12v 10amp non waterproof charger with Anderson connector • 1 Anderson 50A motor connector for motor cable to be soldered or crimped
Optional Accessories: • Anderson socket for electric motor power on BSR ECO ref BSR-PRAND • Partition support for BSR ECO electric motor's Anderson socket ref BSR-SUPP-AND • Non-waterproof 12V replacement charger for BSR ECO suitcase ref BSR-ECO-CH12
Installation advice: If you place your battery in a box of your boat, remember to strap it down so it does not move and does not suffer shocks during high-speed navigation or during rides on the road.
To cut off all power sources, it is advised to install a circuit breaker on your electrical system at the battery output.
Usage Advice: WARNING, this battery does not have a regulated output to power a sonar. Therefore, it is not recommended to connect a sonar to the motor output pin to avoid interference.
However, you can use this battery to power all your 12V electrical park EXCEPT MOTOR at the same time. You can therefore power your sonars, your LIVE probe, your Ethernet switch and other bilge or bait pumps with excellent autonomy.
