Slide For Probe Seanox Racing

Name: SLIDE FOR PROBE SEANOX RACING
Brand: Seanox
SKU: 302263
Rating: 5 (1 reviews)

Read more-Product description

(1 reviews)

From £76.42

Recommended retail price : £76.42

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Model

Price inc VAT

415030

£76.42

Petit modèle

£76.42

415050

£80.67

Moyen Modèle

£80.67

415080

£84.92

Grand modèle

£84.92

Models & specificities Descriptive Reviews

Descriptive

Back to menu

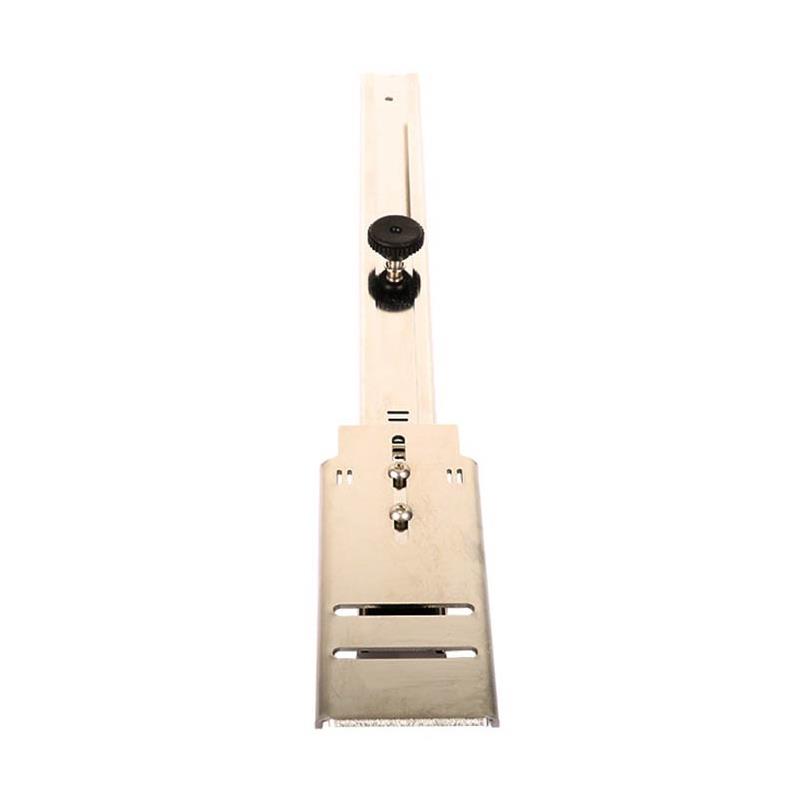

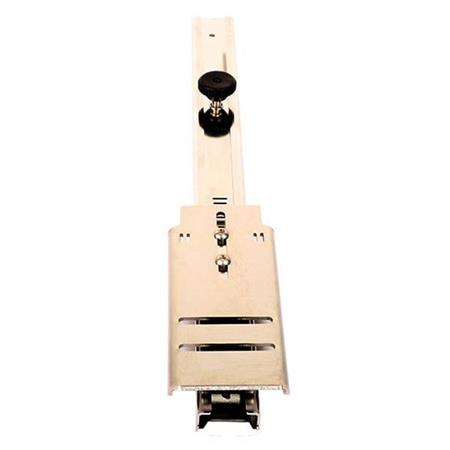

The R&D at Amiaud has developed a new range of slide mounts for transom mounting. These RACING SEANOX slides are designed to adapt to a wide range of transducers with their oblong holes, thus offering fine adjustments for better detection.

The movable part of the slides has a universal fixing plate to hold the transducer bracket. This moving part is held in the low position by a stop and offers an additional adjustment of 35mm (+17.5mm at the top and -17.5mm at the bottom).

They are reinforced to withstand the strains of fast boats and are equipped with a spray shield. Moreover, they offer the possibility to completely remove the transducer by simply loosening the tightening knob. This can be useful during groundings, trailering or lifting for dry dock storage. This operation also makes cleaning the transducer easier by avoiding the use of antifouling.

Technical characteristics:
- Material: 316L stainless steel, 2mm thick, and 3mm for the transducer fixing plate.
- Overall dimensions: 415030 287mm/75mm.
- Overall dimensions: 415050 398mm/75mm.
- Overall dimensions: 415080 533mm/75mm

Moving part with adjustable stop:
- Lengths: PM 220mm,
- Lengths: MM 220mm
- Lengths: GM 320mm.

Fixed part with stop:
- Lengths: PM 218
- Lengths: MM 333
- Lengths: GM 468mm
- Width: 38mm

Drillings for fixings to the transom diameter 6.5mm.

- Transducer plate 175 mm/75mm, with 2 oblong holes of 52mm/22mm

Made in France(EN)
