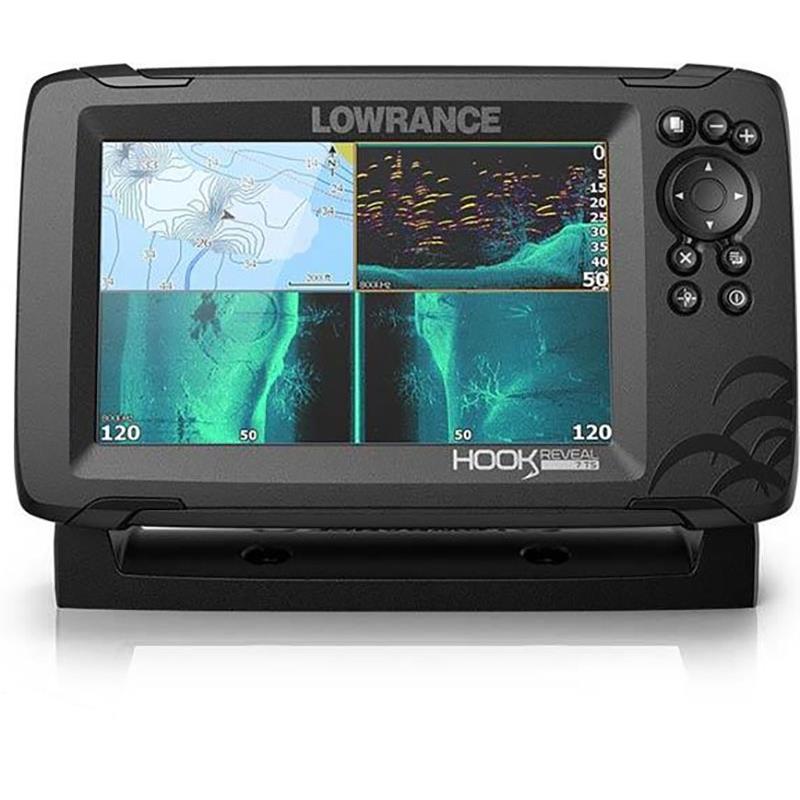

Fishfinder Gps Lowrance Hook Reveal 7

Name: FISHFINDER GPS LOWRANCE HOOK REVEAL 7
Brand: Lowrance
SKU: 204564

Read more-Product description

£350.70

Recommended retail price : £399.97

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Transducer

Price inc VAT

000-15518-001
(Unavailable)

£350.70

Avec Sonde 83/200 HDI

£350.70

000-15516-001
(Unavailable)

£350.70

Avec Sonde 50/200 HDI

£350.70

000-15520-001
(Unavailable)

£400.06

Avec Sonde Tripleshot

£400.06

Models & specificities Descriptive Reviews

Descriptive

Back to menu

Function	Value
Screen size	7 inches
Touch screen	no
2D classic	yes
Down view	yes
Side view	according to probe
Chirp	yes
Gps	yes
Bathymetry	yes
Card reader	yes
Live	no
Network	no

*nuances and options can be indicated in the complete description, do not hesitate to delve deeper or ask for advice.

The all-new HOOK Reveal makes fishing easier, delivering outstanding performance with proven fish-finding tools including: automatic settings, DownScan Imaging™, improved performance in deep water and now FishReveal™, which makes fish easy to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar territory, find the best fishing spots with detailed C-Map maps or map uncharted waters in real-time with Genesis Live.

Main features :
• FishReveal™
• Real-time Genesis Live mapping
• Automatic settings
• Sonar coverage doubled compared to other sonars
• 50/200 HDI Probe with CHIRP low/high frequency and DownScan Imaging™
• Preloaded worldwide map background
• SolarMAX™ screen
• New color palettes for fish detection
• Optimized keyboard with direct access to main features
• Mapping options including C-MAP, C-MAP Genesis, Navionics® and more
• MicroSD card slot
• Simplified dash or bracket
• Improved sonar performance in deep water

Specifications :
• Screen brightness: >1000 NITS
• Weight: 1.25 lb (0.57 kg)
• Max power consumption: 1.25A @ 13VDC with backlight on full
• Typical power consumption : 1.25A @ 13VDC with backlight on full
• Min power consumption : 1.25A @ 13VDC with backlight on full
• GPS : 1 Hz GPS GLONASS WAAS EGNOS MSAS
• Warranty period : 2 years
• Shock vibration : 100,000 cycles of 20 G
• Compass safe : 12" (300mm)
• Supply voltage : 12v DC (10.8-17VDC)
• Waypoints, routes, tracks : 3000 Waypoints 100 Routes 100 Trails
• First fix delay : 30s
• Storage temperature range : 4°F to 140°F (-20°C to 60°C )
• Operating temperature range : 5°F to 131°F (-15°C to 55°C )
• Recommended fuse amperage : 5A
• Humidity : 60°C, 95% relative humidity (RH) for 18 hours
• Dimensions (H x W x D) : 7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm)
• Viewing angles : 80° top/bottom, 85° left/right
• Screen resolution : 800 x 480
• Supported maps : C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)
• Included mapping : C-Map World Base Map
• Correction : DGPS, WAAS
• Compliance approvals : FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
• Mounting type : Gimbal Bracket Front Dash Flush Mount
• Sonar compatibility : Integrated: CHIRP Broadband DownScan
• Waterproof : IPX7 with card door closed
• Interface : Keypad: 8-way directional keypad Zoom +/- Exit Enter/Menu Waypoint/Cursor Power/Light Pages
• SD card storage : Micro SD Card(32 gb Max)
• Backlight color : Pure White LED

• Optional screen protection cover reference = LW000-14175-001

Sounder installation tips
A Ram Mounts RA-H2 support allows you to position and orient your sounder easily on a console or on the edge of your boat and also to rotate it 360° to maintain a very good screen reading comfort in all situations.

Transducer installation tips
A Seanox stainless steel slide For Transducer, reference 410030, 410050 and or 410080 allows you to properly position your transducer on the transom of your boat and protect it during launching. This ensures the protection of your probe when you pull your boat up on its trailer or approach shallow areas like a beach and or a boat ramp. You will have the possibility to accurately adjust the height of the probe so that it gives the best image rendering on your sounder while fishing.
Three versions are available for this transducer holder slide in 30cm/50cm and 80cm to match the height of your transom.

Box Contents :
• HOOK REVEAL 7" sounder
• HDS-7 gen3/gen2 Touch/HOOK/Elite 7-inch support bracket and knobs
• HOOK²/Cruise(5/7/9/12) power cable
• FUSE-1 protection fuse
• HOOK² 7/9/12 corner clips
• 1 Transducer TA according to the model selected.
