Models & specificities
Back to menu
Reference
Price inc VAT
Shaft length (cm)
Price inc VAT
MK-1368900
114
MK-1368901
132
MK-1368902
152
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu
MONTAGE FRONT / FRESH WATERS ULTREX QUEST Motor with DSC probe
The cable steering combined with the functions of the in-built GPS gives the ULTREX QUEST motors additional performance for the most challenging environments. All you have to do is choose if you want an integrated Humminbird Dual Spectrum CHIRP probe or MEGA Side Imaging+.
+ Powerful + Quiet + Efficient + Robust
The QUEST technology equips this new series benefiting from advanced developments in terms of electric propulsion thanks to the "brushless" in the rotors. The motor gains in autonomy with an operational time increased by up to 30%.
The performance is not overlooked with a gain of up to 50% for the 24v motors and 30% for the 36v motors for better manoeuvrability and navigation in extreme conditions (weeds).
The performance is not overlooked with a gain of up to 50% for the 24v motors and 30% for the 36v motors for better manoeuvrability and navigation in extreme conditions (weeds).
Available in 24 / 36 volts with a motor and reinforced support, a more precise GPS navigation system and even an eco mode to extend the battery life, the Terrova Quest is ready to face the elements.
Auto Stow & Deploy: The launch and recovery of the Ulterra Quest is done simply by pressing a button on your wireless remote, your pedal, the One-Boat Network application or from a Humminbird sounder combination.
Power Trim: adjust the depth of the motor up or down by easily pressing a button on the pedal, the wireless remote, the One-Boat Network application or from a Humminbird sounder combination.

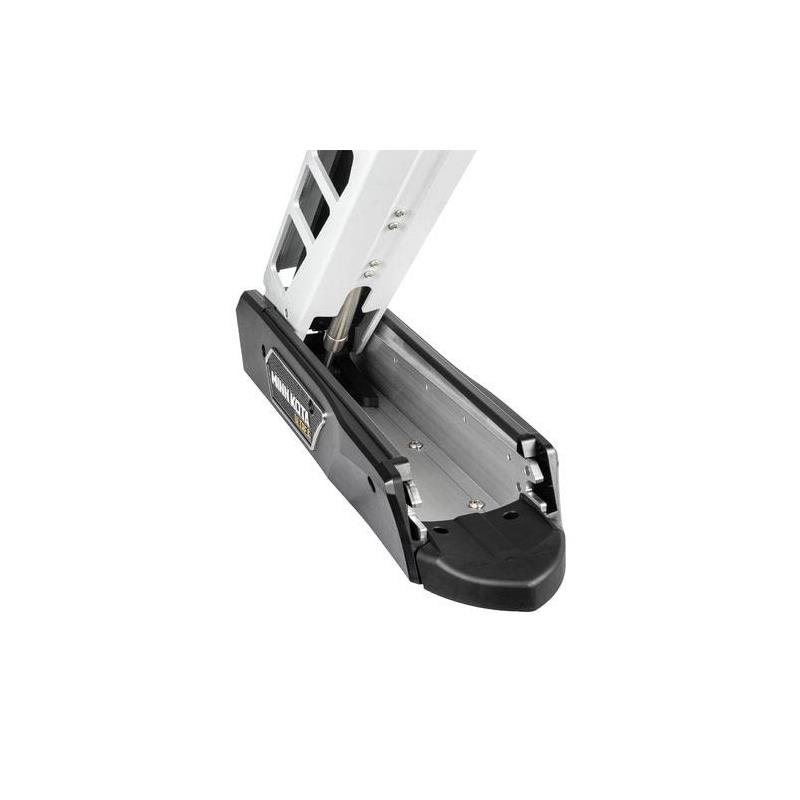

Larger, stronger support to withstand additional thrust and torque.
Carbon fiber shaft is stronger and more flexible ensuring lifetime durability.
New propeller for optimal performance.
Programmable electric pedal: The Ultrex pedal is designed for precision control and instant responsiveness, it's the only pedal with assisted steering for all-day comfort and instant responsiveness. The user can also programme the shortcut button to keep the most used features at foot reach: mark a point, activate AutoPilot, control Talon and Raptor anchors.
Mobile Application: control the Ultrex directly from the mobile application. You get fast mastery of speed, direction, Spot-Lock, and AutoPilot, as well as the ability to update the software.
Launch system: will gradually guide your motor into the water, quickly but without impact. Includes a stainless steel jack.
Improved GPS system: the most reliable navigation system for fishing. The motor uses GPS to control your motor with unparalleled features. Set Spot-Locks, record routes, control speed and direction... Minn Kota makes boat positioning and control automatic, while taking commands from the motor's wireless remote.
Drift mode: Today, fishermen must continually fight environmental conditions in order to maintain a course and a constant speed. Drift mode simultaneously uses the course maintainer and the speed control to manage the boat control. Fishermen no longer need a floating anchor or other aids to control boat movement.
Spot-Lock: Function allowing you to stabilise your craft around a point memorised in the remote control (or in the combo). The motor is autonomous in compensating for the effects of wind, current, etc...
AutoPilot: The accuracy of your GPS allows the boat to be maintained in the predefined direction while correcting the drift effects related to current or wind.
Automatic mooring: when the locking pedal is activated, the motor head positions itself for motor lifting.
Battery gauge: it is possible to view all the information on consumption and autonomy in use from a HUMMINBIRD combination. An alarm sounds when the range drops below 20%.

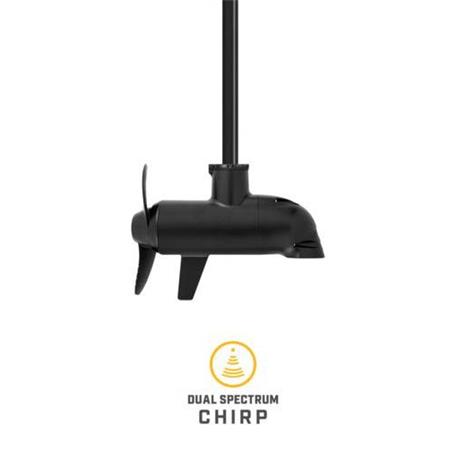

Integrated probe of your choice:
DSC: Dual Spectrum Chirp
MSI+: Mega Down/Side Imaging+ New propellers for optimal performance.
The battery gauge on the QUEST gives access to: • Autonomy in % • Motor battery voltage • Available usage time • The time when it will be empty • The information given is only correct if the motor is running (propeller turning) • When autonomy reaches 20%: eco mode activation • This screen is available ONLY on networked Humminbird combinations.
In the box: • ULTREX Quest motor MSI+ probe • Cable control pedal • Micro Remote MK-1866561 • MKP-40 Propeller MK-1865040 • 1 x Weedless Wedge 2 Propeller (MKP-39) • 1 x Stabilizer • 1 x French manual
• What cables are delivered with the motors with probes? • With motors having a DSC probe: • 1 x MK-1852086: MDI adapter for H7 • 1 x MK-1852088: MDI adapter for Helix except H7 • 1 x AS-EC30E: 9m network cable • 1 x AS-ECQDE: network adapter for Helix
• With motors having an MSI+ probe • 1 x MK-1852088: MDI adapter for Helix except H7 • 1 x AS-EC30E: 9m network cable • 1 x AS-ECQDE: network adapter for Helix
Optional Accessories: • Micro remote for I PILOT BT ET GPS motor ref MK-1866561 • WIRELESS remote ref MK-1866655 • Reinforcement plate for QUEST mounting Ref MK-1854058 • 60A waterproof circuit breaker Ref MK-1865115 • Composite support for fresh waters QUEST Ref MK-1854056 • Spare pedal for TERROVA AND RIPTIDE TERROVA QUEST Ref MK-1866078 • Spare Power Pro MKP-40 propeller for QUEST Ref MK-1865040 • Spare Weedless Wedge 2 MKP-39 propeller for QUEST motor Ref MK-1865039
