Descriptive
Back to menu

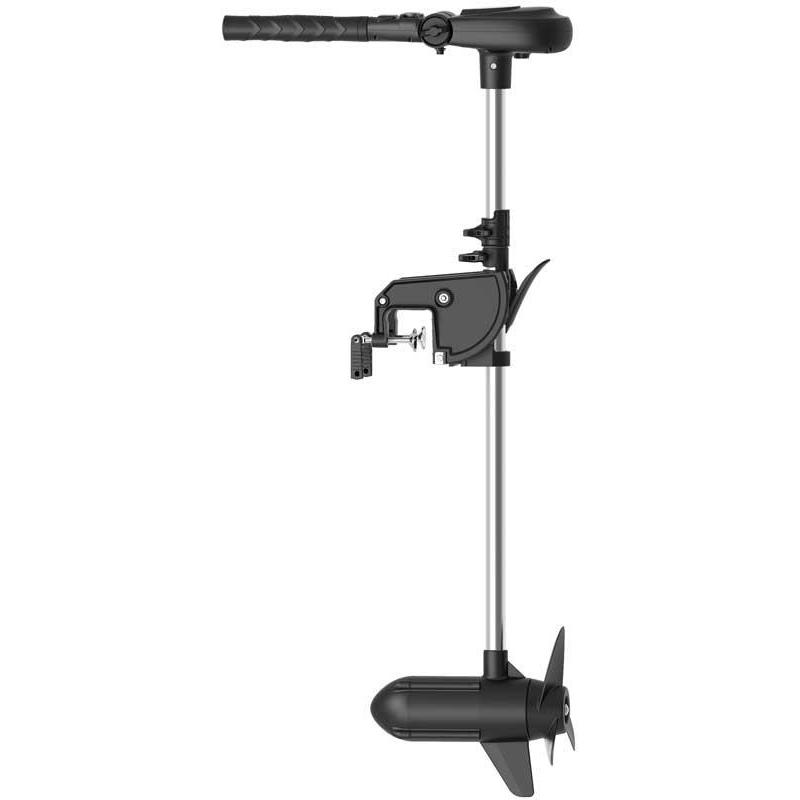

Powered by a brushless 24V / 6 Hp / 160 Lbs motor, the Haswing Protruar 5.0 160 Lbs motor is suitable for a wide range of boats on varying waterways. Its powerful motor, equipped with an adjustable and continuous speed control system with a magnetic safety key, is very easy to handle. Its well-performing and comfortable tilting system allows you to navigate easily in all waters. Its propeller is also equipped with a built-in safety system: it automatically stops in case of an obstacle. Its charge indicator tells you the battery charge level.
Features: • Max power (LBS): 160 (6 hp) • Weight (kg): 14 • Amp. (Nominal / max) (A): 100/105 • Power (nominal / max) (W): 2400/2520 • Voltage (V DC): 24 • Number of levels for battery charge indication: 3 • Suggested Battery (not included in the supply): TYPE 120 Ah x 2 slow discharge • Mounting: at the rear: 7 positions • Tiller handle: Angle 180° • Speed setting (Forward / reverse): Direct electronic variable adjustment forward / reverse with magnetic key • Shaft: material: Stainless steel • Shaft: length (" / mm): 39.37 / 1000 • Propeller (black): number of blades: 3 • Max. boat length (m) / weight (kg): 8 / 800
Electrical installation tips: It is advisable to install a circuit breaker on your power supply to protect your motor. If using a 24V lithium battery, pay attention to the battery wiring section, which should be custom-made.
